VS Pump — From Workshop Grey to Showroom

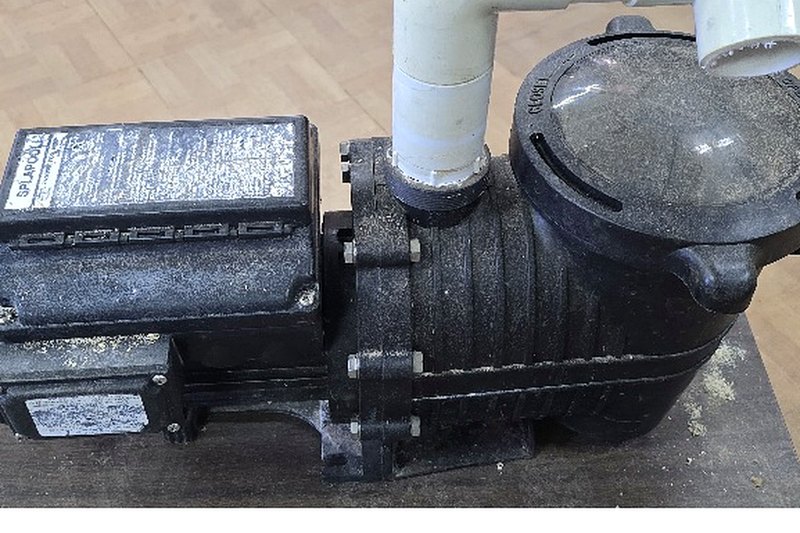

Redesign an existing variable-speed pool pump: sharpen the visual identity, improve thermal and acoustic performance, refine maintenance ergonomics — and stay fully backward-compatible for the replacement market.
Four fronts at once: turn an industrial grey box into a premium product, keep hot electronics alive under continuous load, silence motor noise, and make routine maintenance effortless — without moving a single pipe.
Redesign Objectives
Transform the industrial look into a sleek, premium, modern profile, with dedicated branding surfaces and a cohesive colour, material and finish language.
Engineer airflow paths around the electronics, distribute cooling air across the motor body under continuous high load, and add acoustic baffling that noticeably suppresses motor sound.
Replace the hard-to-undo threaded leaf-basket cover with an effortless mechanism, break the seal vacuum at the touch of a lid, and keep the control panel fully visible and reachable.
Preserve the exact inlet and outlet port centerlines and thread sizes, so the new pump installs into existing plumbing without replumbing.

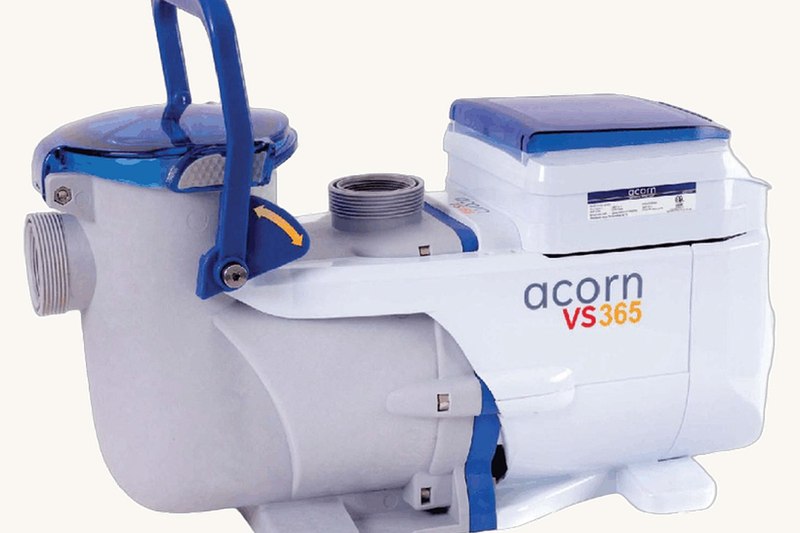

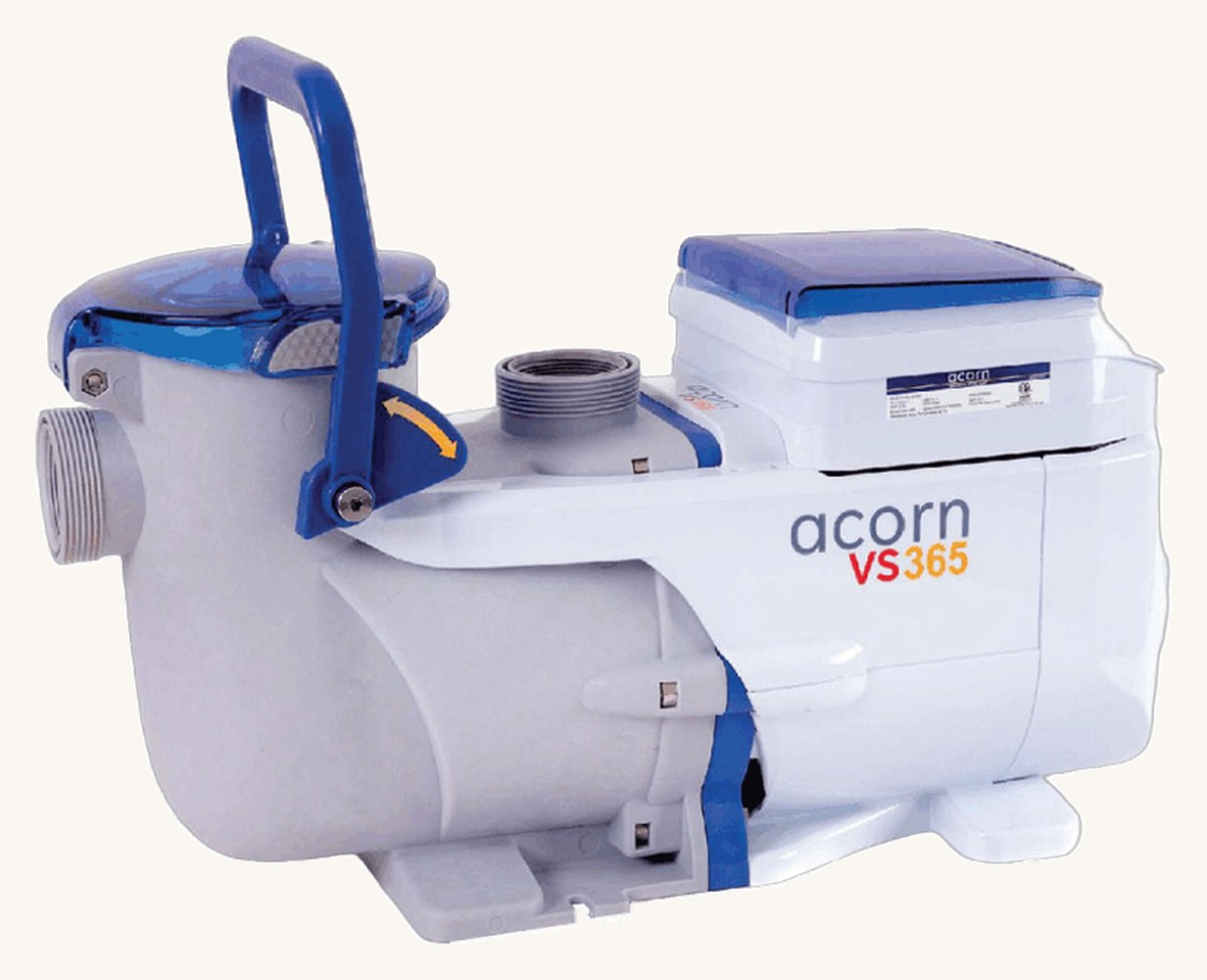

Results & Design Achievements
A custom shroud directs high-velocity airflow along the entire motor casing, concentrating maximum air movement under the hottest electronic zones.
A mechanical seal-release system and a quick-cam lid end the struggle with stuck threaded covers — one smooth quarter-turn and the basket is open.
The lock handle blends into the body styling and the base consolidates into a rigid, one-piece footrest — fewer parts, cleaner lines.
Integrated protective covers significantly reduce motor noise for quieter background operation.
An updated colour scheme, tactile finishes and clear brand placement give the pump its showroom identity.
Port alignment maintained for direct drop-in replacement of most pool pump motors.
Drop-in — same ports, same threads
Cooler — airflow along the whole motor
Quieter — integrated acoustic covers
Patented — IP protection secured
Patented
The client secured intellectual-property protection through patents.
Patented mechanisms — details shared with clients under NDA.
“Belongs in a showroom, not next to a pool.”
— Potential client feedback, industry pool show
